Curb Mule Head

Curb Mule Head
SKU: CC966-01

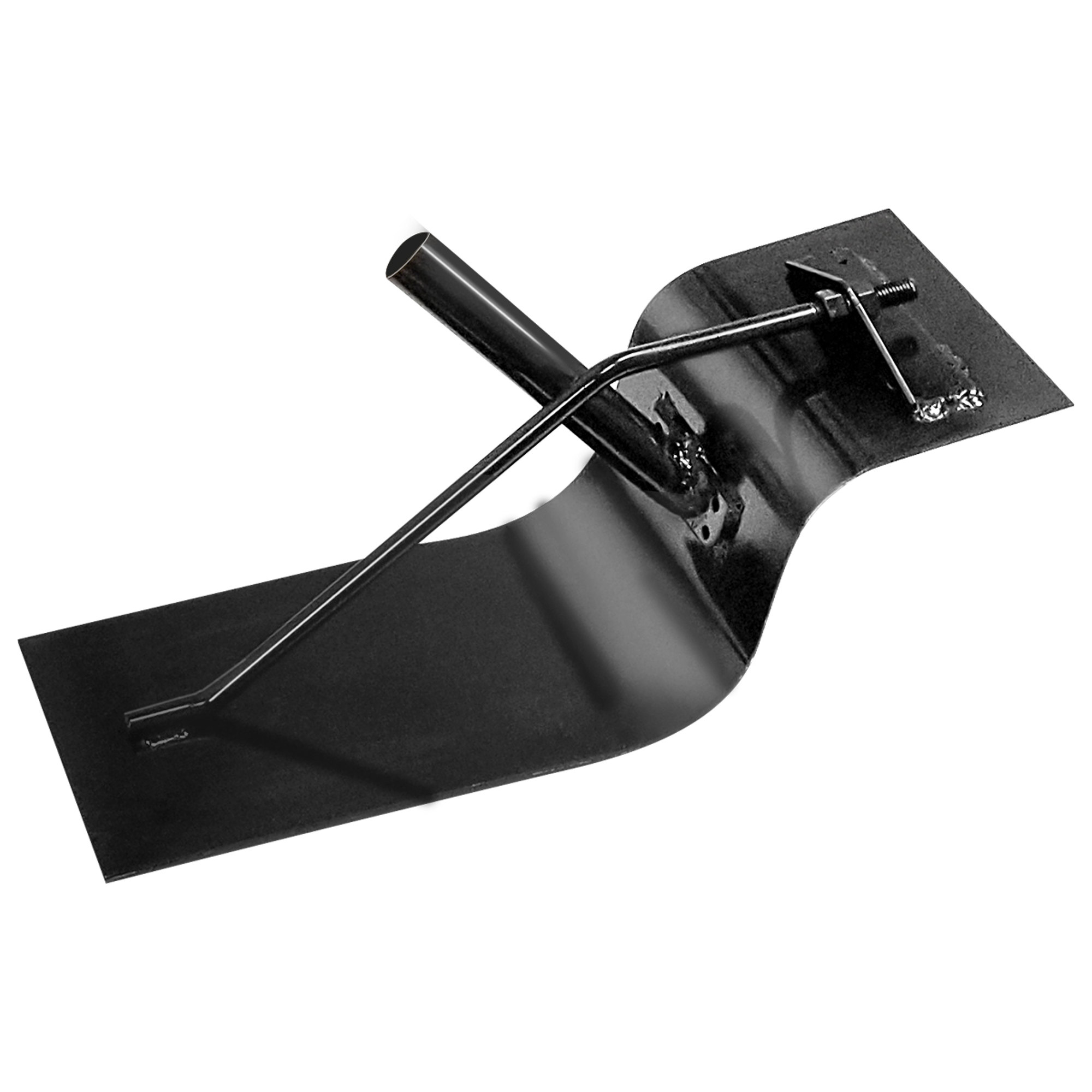

The 7" long steel blade moves smoothly along edges of concrete forming both curbs and gutters in one pass of the tool. This curb tool creates a 2-1/2" radius on the top edge of concrete slabs preventing the edges from chipping with wear. The face then extends down 6" forming the back of the step. A 1-1/2" batter at 6" creates a slope that promotes proper drainage. The tool then forms a 3" radius curb as the bottom extends out 13-1/2" for proper coverage. The all steel tool provides additional weight for moving through concrete. A ferrule extends out at an angle for a comfortable working position. Purchase the 48" hardwood handle (CC966-02) separately. The curb and gutter formed is a popular dimension in Texas.

  • Strong steel construction
  • One tool forms the top, front, and bottom of curb/gutter
  • 2-1/2 In. radius for Curb
  • 3 In. radius for Gutter
  • Creates a smooth radius on curbs to prevent chipping of concrete
  • Blade extends back 5 In. for proper coverage on top of curb
  • Blade extends down 6 In. to form front of curb
  • Face has 1-1/2 In. Batter at 6 In.
  • Blade extends outward 13-1/2 In. for proper coverage on gutter
  • Batter encourages drainage
  • Handle mounting angled for ease of use
  • Rivet free for a smooth finish
  • Use with 48" Hardwood Handle, sold separately
Products specifications
NameValue
MaterialSteel
Package ContentsHead only
Blade TypeCurb and Gutter
Blade MaterialSteel
Blade Length7" (177.8mm)
Batter1-1/2" at 6"
HandleNone
