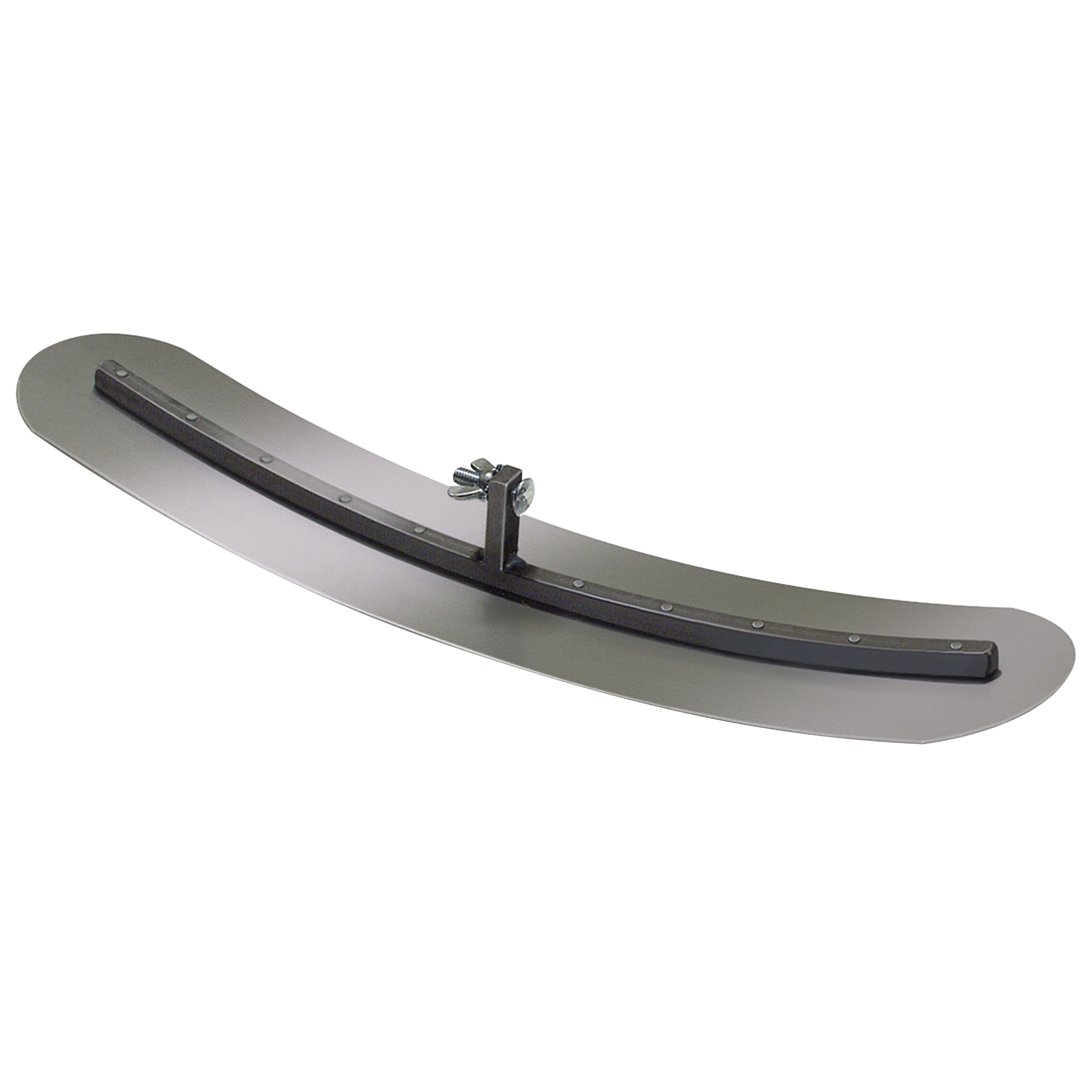

24" x 5" Curved Round End Shotcrete Fresno with Single Action Bracket

24" x 5" Curved Round End Shotcrete Fresno with Single Action Bracket
SKU: CC914

This uniquely shaped fresno is specifically curved for shotcrete applications where the curve helps provide force in moving through the material leaving a smooth finish on surface transitions. Sturdy construction stands up to the harsh working conditions of rough gunite and shotcrete materials. A 24" high quality carbon blade on a steel mounting to the same high quality specifications of the typical Kraft Tool Co.® fresno. The 21" square mounting extends the length of the blade to provide reinforced support of the 5" wide blade. The rivets on the mounting are left unground for additional strength in rough material. The rounded ends are raised to prevent scoring of the surface. Single action bracket allows for back and forth motions. Use with clevis handles (sold separately). Use with handle adapters for use with bull float extension handles.

  • Designed for gunite and shotcrete applications
  • Curved blade leaves a smooth finish on surface transitions
  • Raised ends/batter prevent scoring the surface
  • High quality tempered steel blade
  • Rivets are left unground for extra strength
  • Thick blade for rigidity
  • Strong enough to stand up to the rigors of gunite work
  • Round ends won't gouge surface
  • 1/2 In. square steel bar keeps blade flat
  • Single Action Bracket for back and forth movements
  • Use with a clevis handle
  • Use a handle adapter for use with bull float handles
Products specifications
NameValue
Length24" (609.6mm)
Width5" (127mm)
Thickness0.035
MaterialCarbon Steel
FinishUnground Rivets
Package ContentsFresno with Bracket
Blade TypeCurved Shotcrete Fresno
PatternRound Ends with Batter
Blade MaterialCarbon Steel
Blade Length24" (609.6mm)
Blade Width5" (127mm)
BatterYes
BracketClevis Bracket
HandleNot Included - Use with Clevis Handles or Adapters
Country of OriginUnited States with global materials
